Details : Folding House 37m2
This model is suitable for families of 3-5 people and can provide customers with a comfortable living experience. The internal living facilities are complete and the water and electricity systems are prefabricated. Both the room layout and the exterior wall color support customization.
|
MODEL |
20Ft Expandable Folding House |
|
|
PLAN |

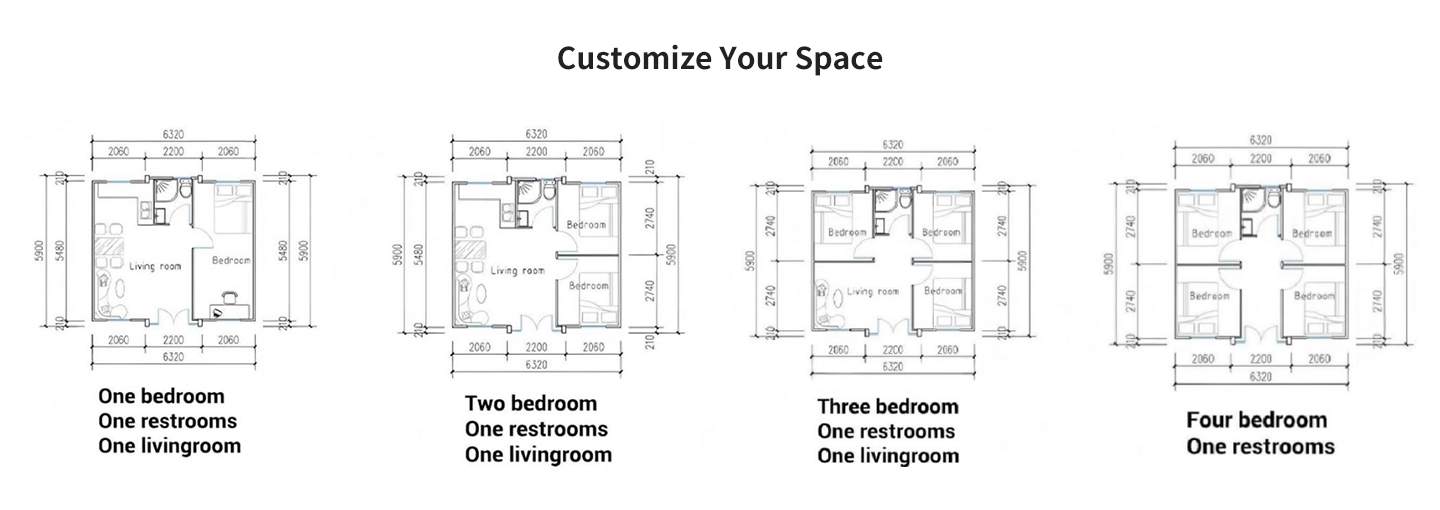

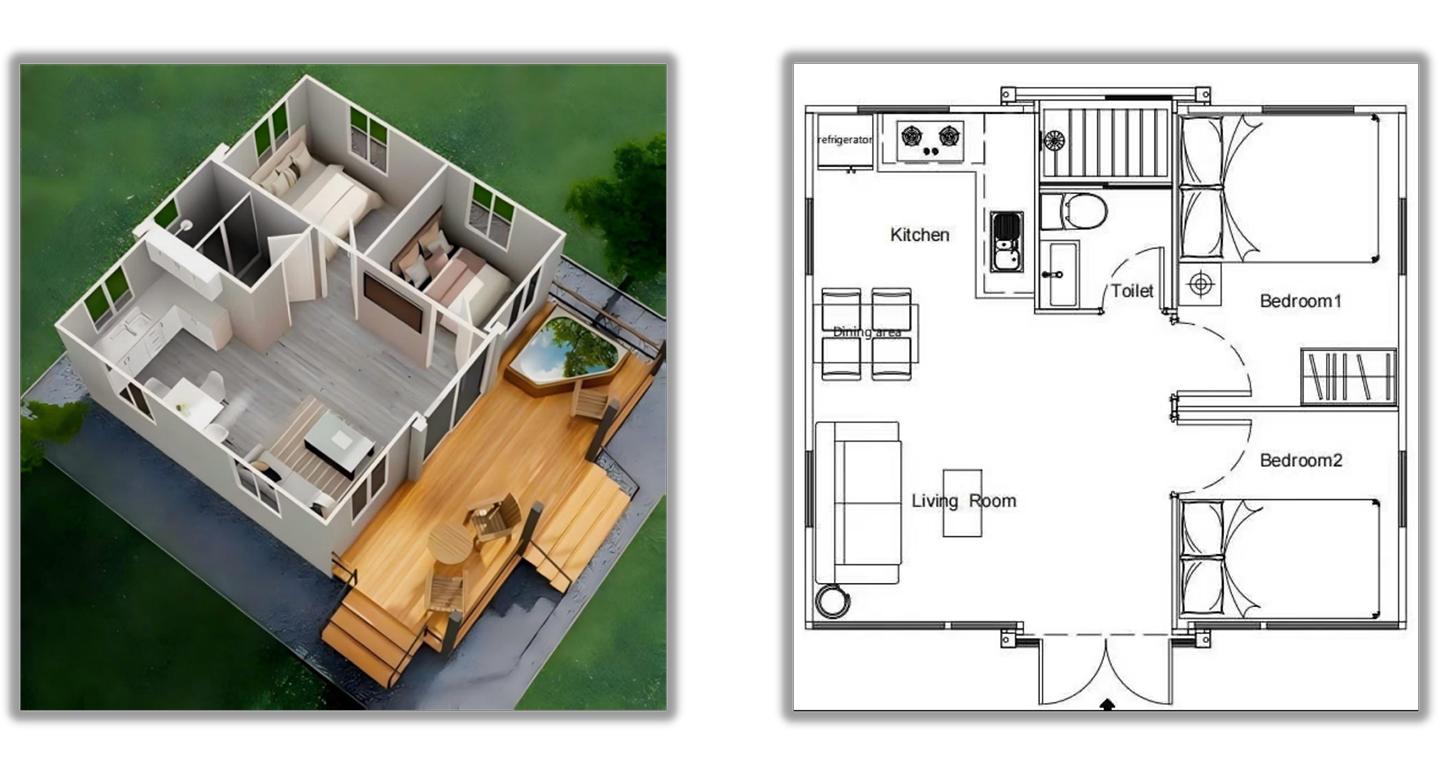

2 Berdooms, 1 living room, 1kitchen and 1 bathroom |
|
|
SIZE |
Layout dimensions: L5900mm*W6300mm*H2480mm Internal dimensions: L5640mm*W6140mm*H2240mm Folded size:L5900mm*W2200mm*H2480mm |
|
|
FRAME |
1.5mm-3mm |
Galvanized square tube |
|
BASE |
18mm |
Cement board+2mm leather floor |
|
WINDOW
|
6+1 unit |
Double layers window with broken bridge aluminum |
|
GLASS |
5mm+10mm+5mm |
Double layers glass with heat isolation |
|
WALL |
65mm |
Fire resistant rock wool+ color steel sandwich panel |
|
ELECTRIC CABLE |
6mm2/10mm2 |
Main switch, socket as per customized |
|
TOILET |
Installed |
Sink, bathroom cabinet, toilet, shower, sliding glass door, floor drain |
|
KITCHEN |
Installed |
L-shaped |
|
ROOF |
Three Angle |
Optional |
|
EXTENTION BALCONY |
2m/3m wide |
Optional |
|
LOADING QUANTITY |
maximum 2units in 1*40HQ container |
|

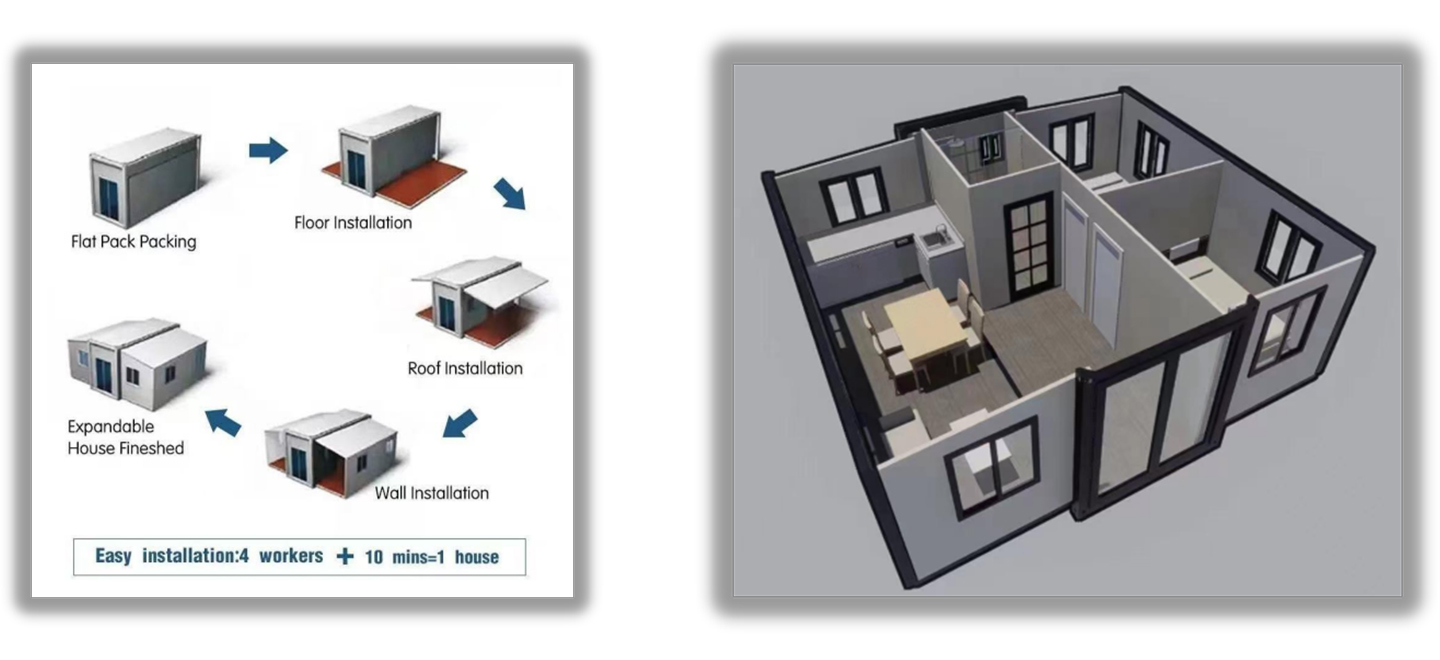

Installation Display
